Feature:
1. Adopt high-sensitivity gas detection probe, with stable signal, high accuracy and reliable use.
2. The product adopts wall-mounted installation, easy installation, high protection level, and good waterproof.
3. It has the characteristics of wide measuring range, good linearity, easy installation and long transmission distance.
4. The shell is made of high-quality PVC material, which is not easy to damage, durable, and has a long service life.
5. The transmitter can be widely used in food industry, livestock and poultry farming, agricultural greenhouses, aquaculture, pharmaceuticals, medicine care and other industries.
Specification:
Condition: 100percent Brand New

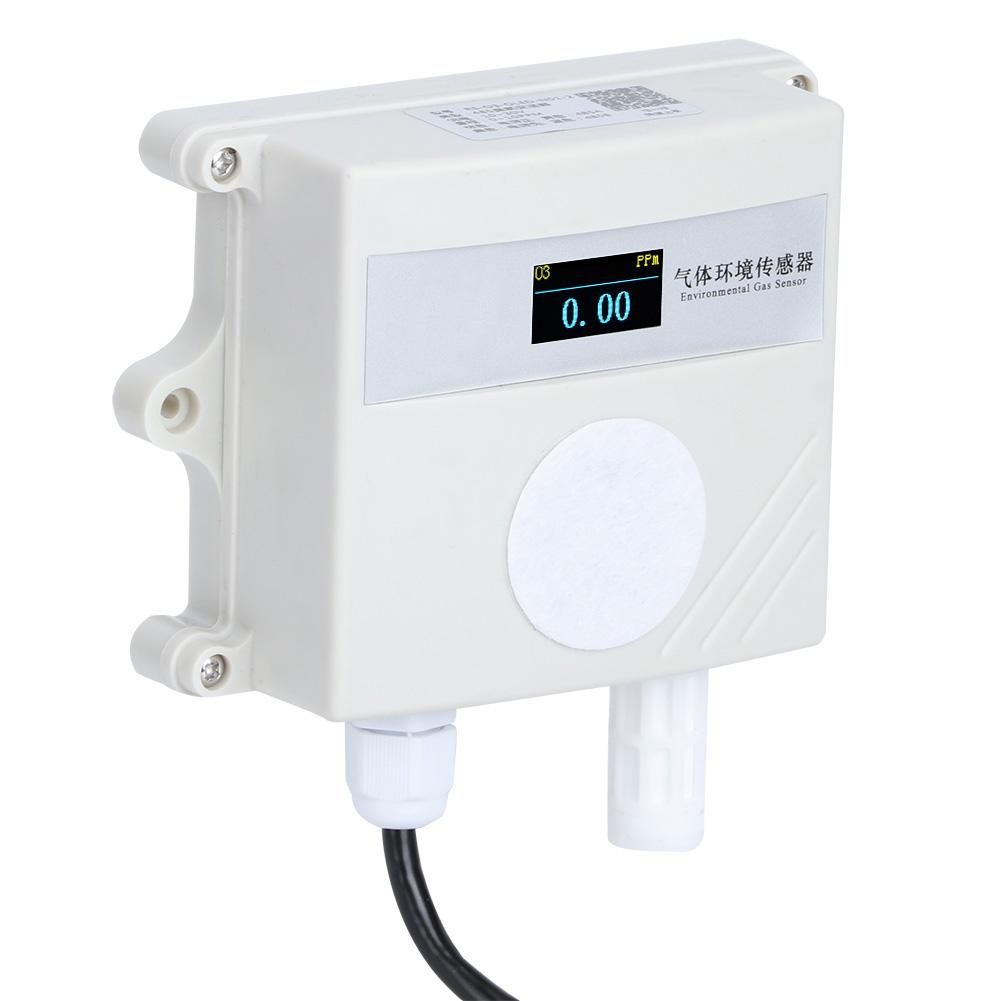

Item Type: Ozone Transmitter
Material: PVC
Power Supply: 10-30V DC
Average Power Consumption: 0.1W
Output Signal: 485 (ModBus-RTU)
Temperature Measurement Range: -40 celsius -80 celsius
Temperature Accuracy: +/- 0.5 celsius
Humidity Measurement Range: 0-100percent RH
Humidity Accuracy: +/- 3percent RH
Ozone Measurement Range: 0-10.00ppm, 0-100ppm
Working Temperature: -10 celsius -55 celsius
Working Humidity: 15percent RH-90percent RH (No Condensation)
Working Pressure: 91-111Kpa
Data Update Time: 1s
Repeatability: less than 2percent Output Value
Stability (Month): less than 7percent Signal Value / Year
Response Time: less than 35S
Warm-Up Time: more than 5 Minutes
Resolution: Range: 0-10ppm: 0.01ppm, Range: 0-100ppm: 0.1ppm
Accuracy: +/- 6percent FS
Zeroing Drift: Range: 0-10ppm: less than +/- 1ppm Range: 0-100ppm: less than +/- 5ppm
Note: All the above specifications are measured under the environment conditions: temperature 20 celsius , relative humidity 50percent RH, 1 atmospheric pressure, and the gas concentration to be measured does not exceed the sensor range.
Weight: Approx. 190g / 6.7oz
Panel Size: Approx. 8.8x8.8cm / 3.5x3.5in
Interface Description:
The wide voltage power input can be 10 ~ 30V. When connecting the 485 signal line, please note that the two lines A \ B cannot be reversed, and the addresses of multiple devices on the bus must not conflict.
Thread Color
Explanation
Power Supply
Brown
Power Positive (10 - 30V DC)
Black
Power Negative
Communication
Yellow
485-A
Blue
485-B
.Common Problems and Solutions
Device cannot connect to PLC or computer
Possible reason:
1. The computer has multiple COM ports, and the selected port is incorrect.
2. The device address is wrong, or there are devices with duplicate addresses (the factory default is all 1).
3. Baud rate, check mode, data bit, stop bit error.
4. The host"s polling interval and waiting time for answering are too short, and both need to be set above 200ms.
5. The 485 bus is disconnected, or the A and B lines are reversed.
6. If there are too many devices or the wiring is too long, power should be supplied nearby, add a 485 enhancer, and add 120 Ohm terminal resistance.
7. The USB to 485 driver is not installed or damaged.
8. The equipment is damaged.
Package List:
1 x Transmitter1 x Bag of Accessories (2 x Screws, 2 x Screw Nuts)
Note:
1. Please allow 0-2 cm error due to manual measurement. Thanks for your understanding.2. Monitors are not calibrated same, item color displayed in photos may be showing slightly different from the real object. Please take the real one as standard.
